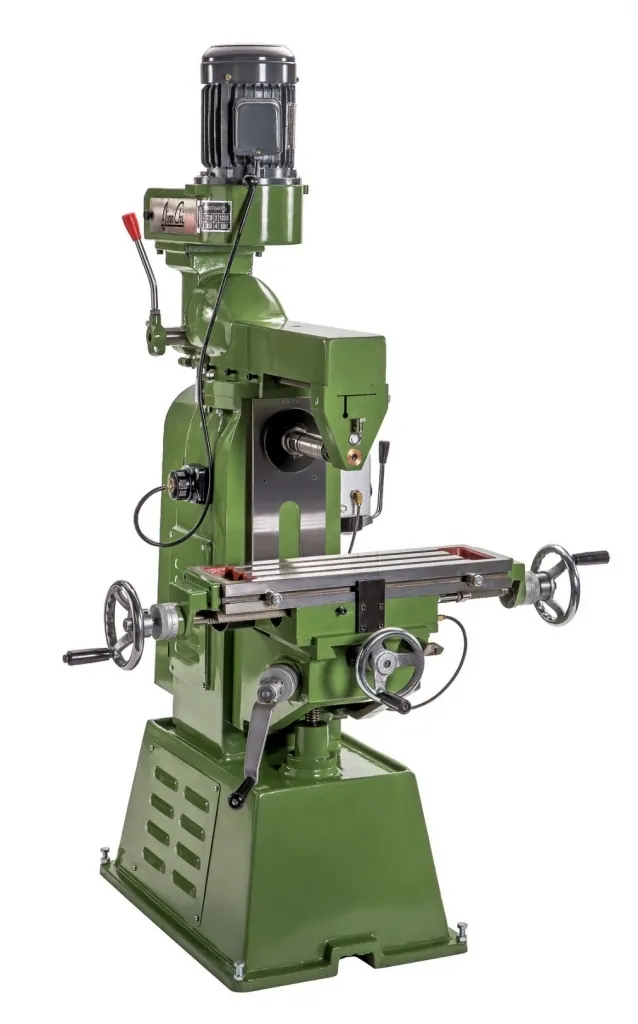

Compact vertical and horizontal milling machine for workshops with limited floor space, without giving up multi-purpose capability. 160 x 545 mm table, vertical spindle 500-1720 rpm in 4 steps.
JC-1/4UV Specification Manual/Hydraulic
| Item | Unit | Specification |
|---|---|---|
| Table | ||
| Table Size | mm | 160 × 545 |
| Longitudinal Travel (X-axis) | mm | lead screw 270 / cylinder 250 |
| Cross Travel (Y-axis) | mm | 125 |
| Vertical Travel (Z-axis) | mm | 230 |
| Spindle | ||
| Spindle Tapper | N.T.30 × 1” | |
| Spindle Motor | 3 Phase 2HP | |
| Spindle Speed (4 Steps) | rpm | 240 - 1200 |
| Feeder Type (Optional) | Hydraulic(cylinder) / lead screw / gear rack | |
| Vertical Spindle | ||
| Quill Travel | mm | 80 |
| Vertical Spindle Speed | rpm | 500-1720 4 Steps (belt) |
| Vertical Spindle Motor | 3 Phase 1HP | |
| Weight / Packing | ||
| Packing (LxWxH) | mm | 1000 × 800 × 1400 |
| Net Weight | kg | 360 |
Specifications are taken from the manufacturer’s data and are subject to change without notice. For a full catalogue or a customised size, please get in touch.
