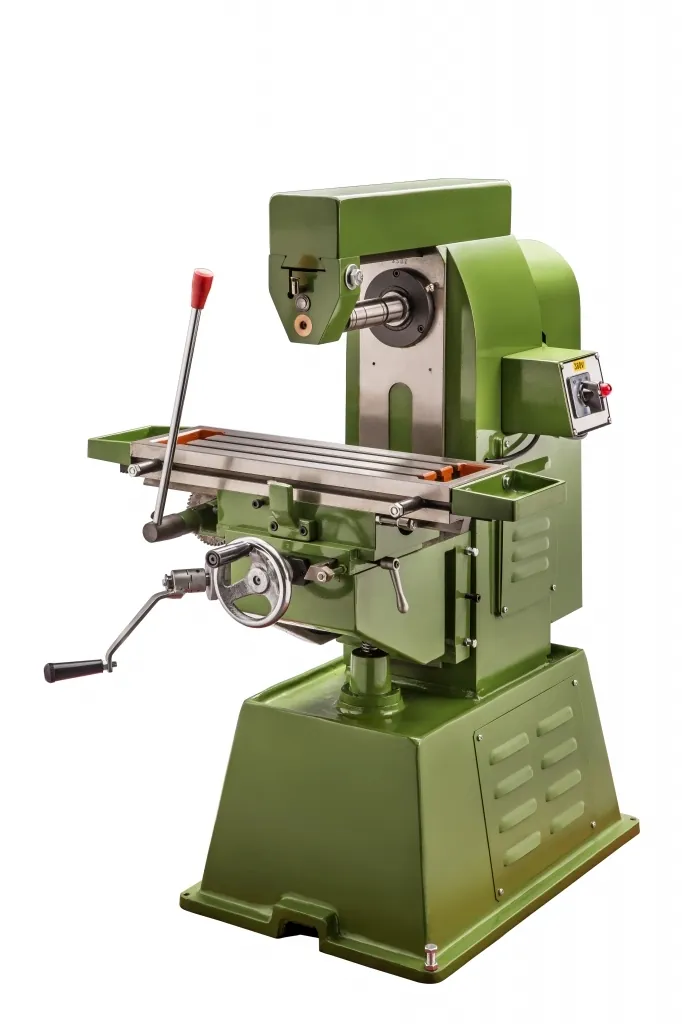

Economical model for light machining of hand tools and household hardware, with a small footprint. 160 x 545 mm table, 4-step spindle speeds from 240 to 1200 rpm.
JC-1/4U Specification Manual/Hydraulic
| Item | Unit | Specification |
|---|---|---|
| Table | ||
| Table Size | mm | 160 × 545 |
| Longitudinal Travel | mm | lead screw 270/gear rack 270/cylinder 250 |
| Cross Travel | mm | 125 |
| Vertical Travel | mm | 230 |
| Spindle | ||
| Spindle Tapper | N.T.30 × 1” | |
| Spindle Motor | 3 Phase 2HP | |
| Spindle Speed (4 Steps) | rpm | 240 - 1200 |
| Feeder Type | Manual(lead screw/gear rack)/Hydraulic(cylinder) | |
| Weight / Packing | ||
| Packing (LxWxH) | mm | 900 × 800 × 1080 |
| Net Weight | kg | 300 |
Specifications are taken from the manufacturer’s data and are subject to change without notice. For a full catalogue or a customised size, please get in touch.
