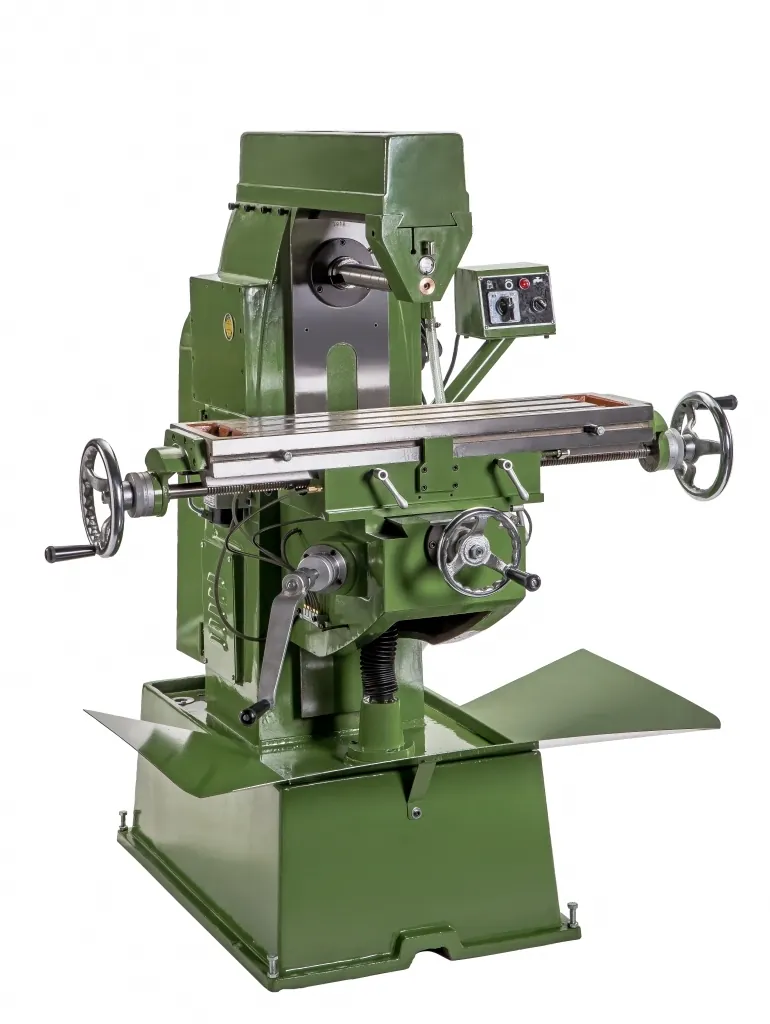

Rigid construction with stable cutting for a wide range of heavy duty work. 220 x 815 mm table, 6-step spindle speeds from 80 to 760 rpm.
JC-3/4U Specification Manual/Hydraulic
| Item | Unit | Specification |
|---|---|---|
| Table | ||
| Table Size | mm | 220 × 815 |
| Longitudinal Travel | mm | lead screw 420 / cylinder 450 |
| Cross Travel | mm | 220 |
| Vertical Travel | mm | 370 |
| Spindle | ||
| Spindle Tapper | N.T.30 × 1” | |
| Spindle Motor | 3 Phase 2HP | |
| Spindle Speed (6 Steps) | rpm | 80 - 760 |
| Feeder Type | Manual(lead screw)/Hydraulic(cylinder) | |
| Weight / Packing | ||
| Packing (LxWxH) | mm | 1300 × 1200 × 1500 |
| Net Weight | kg | 700 |
Specifications are taken from the manufacturer’s data and are subject to change without notice. For a full catalogue or a customised size, please get in touch.
